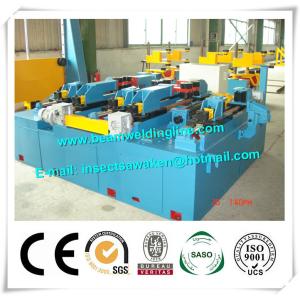

    H Beam Automatic Assembly Machines With Panasonic Gas Shield Welder

    Ask Lasest Price
    Brand Name : Friendship Machinery
    Model Number : HG-2000
    Certification : CE, ISO
    Price : USD23,000
    Supply Ability : 20 sets per month
    Delivery Time : 30 working days after down payment
    • Product Details
    • Company Profile

    H Beam Automatic Assembly Machines With Panasonic Gas Shield Welder


    H Beam Automatic Assembly Machines With Panasonic Gas Shield Welder


    1. Major technical Parameters


    ● Height of the former: 200-2000mm
    ● Thickness of the former: 6-32mm
    ● Width of the wing board: 200-800mm
    ● Thickness of the wing board: 6-60mm
    ● Length of the work piece: 4000-15000mm
    ● Assembling Linearity speed: 650-6500mm/min


    2. Provide goods and compose parts


    ● Machine body: main shelf, up-door shelf, former and wing board, synchronous alignment
    ● Input conveyor: 2.6M * 4sets
    ● Out conveyor: 2.6M * 4sets
    ● Hydraulic system: oil pump station, high pressure hose, hydraulic cylinders etc
    ● Auto welding unit: 2 sets Tangshan PANASONIC KR-350 Co2 welding. power, automatic arc-guiding electric welding machine, hydraulic clamping system
    ● Spare parts: 3 pieces of buttons switch, 3 pieces of 4A/ 2A fuses each



    3. Performance


    Assembling machine is a specially designed for the molding of H beam. During the assembling of the H beam, hydraulic clamp is used for synchronized camping and automatic centering to guarantee the accurate positioning of former of different widths during the specified range.



    4. Technical files


    ● Using manual of the machine (Include electrical schematic)
    ● Shipping list
    ● The certification of the machine
    ● The basis of drawing of the machine
    ● Hydraulic using manual, inverter using manual

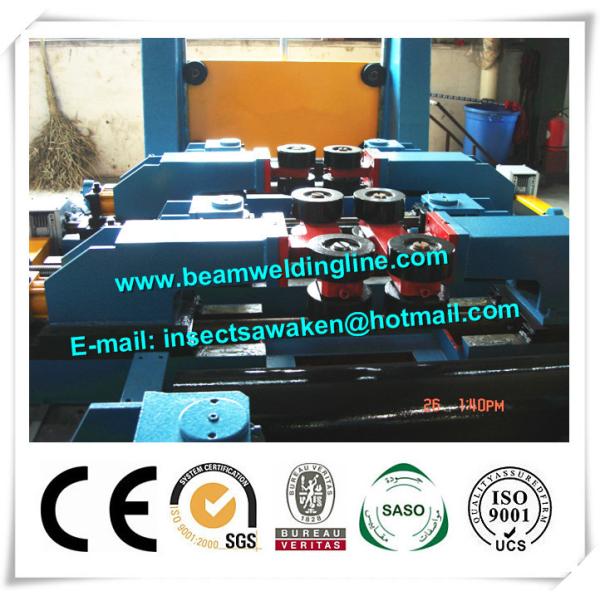

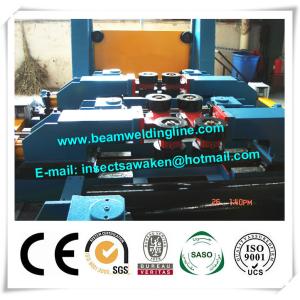

    Work-piece input and output clampe device


    1. Up press cylinder, 2. Up press beam, 3. Column, 4. Lift beam, 5. Up press roller, 6. Arc guide device,

    7. Web clamp device, 8. Flange clamp device, 9. Underside beam, 10. Wall board,

    11. Transmission roller, 12. Conductor for welding machine, 13. Reducer motor,

    14. Vice clamp device, 15. Hydraulic motor for web clamping, 16. Hydraulic motor for flange clamping,
