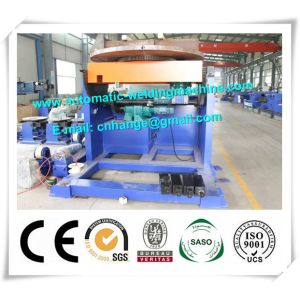

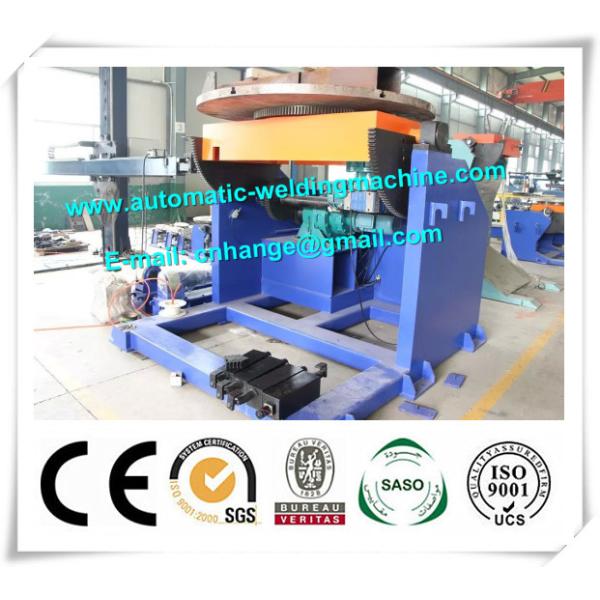

    Automatic Welding Positioner Turntable Column And Boom VFD Speed

    Ask Lasest Price
    Brand Name : Friendship Machinery
    Certification : CE, ISO
    Supply Ability : 30 sets per month
    • Product Details
    • Company Profile

    Automatic Welding Positioner Turntable Column And Boom VFD Speed

    Automatic Welding Positioner Turntable Column And Boom VFD Speed


    1. General Description


    -The worktable could be rotated ( in 360 degree)or tilted (in 90-120 degree)allowing work piece to be welded at the best position.


    -Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.


    -Electric control system composed of electric cabinet and manual control panel making it easy to operate.


    -Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.


    - Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.


    -Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.


    -The whole rack will not deform even long time use because of annealing treatment


    2. Technical Parameters


    Model

    Loading

    Capacity

    (kg)

    Rotation Speed

    (rmp)

    Tilting Speed

    (rmp)

    Tilting Angle

    Table Dia.

    (mm)

    Rotation Power

    (kw)

    Tilting Power

    (kw)

    ZHB-01

    100

    0.4-4

    2

    0-90

    400

    0.18

    0.18

    ZHB-03

    300

    0.1-1

    1

    0-90

    600

    0.37

    0.37

    ZHB-06

    600

    0.09-0.9

    0.42

    0-90

    1000

    0.75

    0.75

    ZHB-12

    1200

    0.05-0.5

    0.4

    0-120

    1200

    1.1

    1.1

    ZHB-30

    3000

    0.05-0.5

    0.23

    0-120

    1400

    1.1

    2.2

    ZHB-50

    5000

    0.05-0.5

    0.2

    0-120

    1500

    1.5

    3

    ZHB-100

    10000

    0.05-0.5

    0.2

    0-120

    2000

    3

    4

    ZHB-150

    15000

    0.04-0.4

    0.15

    0-120

    2200

    4

    7.5

    ZHB-200

    20000

    0.04-0.4

    0.15

    0-90

    2500

    5.5

    11

    ZHB-300

    30000

    0.03-0.3

    0.15

    0-90

    3000

    5.5

    15

    ZHB-500

    50000

    0.02-0.2

    0.06

    0-90

    4000

    11

    18.5
